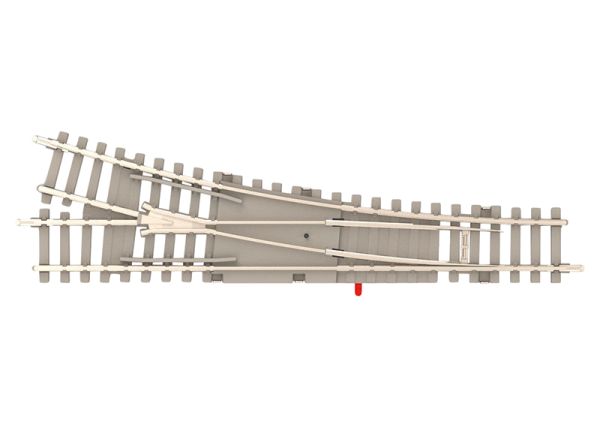

Minitrix Right Turnout with Concrete Ties Radius 112.6 mm / 4-7/16" Model train

Track with concrete ties has become a standard all over Europe – and this should apply to model railroading too. N Gauge now gets track with concrete ties and rails conforming to NEM Code 60.

15° Turnout with a Polarized Frog, straight side of the turnout |< 112.6 mm / 4-7/16" >|. Branch radius = R4 - 15° + 1 x 14503. An electric turnout mechanism can be installed on these turnouts. Minitrix Track is the ideal track for fast setup of a track pattern on a table or on the floor. With six sizes of curves, flex track, standard or wide radius turnouts and standard or wide-angle crossings the Minitrix track system offers ideal conditions. The most important is careful installation of the track. Small unevenness, wood chips remaining under the track or deburred drill holes have relatively greater effect in 1:160 Scale than in larger scales. For trouble-free operation, we recommend mounting an N layout on a permanent sub-base using plywood or open framework construction. Minitrix track has solid rails made of a special rust-free alloy. Together with the prototypical profile cross section this guarantees unsurpassed contact reliability between wheel and rail. There are also different track extension sets, item numbers 14311 and 14312, for easy expansion of your layout. This allows you to set up parallel loops, passing sidings, and storage tracks.

Highlights

• The image shows a straight section of track with concrete ties 112.6 mm / 4-7/16"
• The Minitrix rail profile is focused on the prototype profile UIC 60 and models correctly Code 60 according to the NEM
• The track with a gray concrete tie look have solid rails made of a special rust-free alloy
• The material and the track profile offer reliable contact for transmitting current to the wheels
• The spacing between the center of two tracks is 33.6 millimeters / 1-5/16"

Product info: The frog for these turnouts is made of metal and is continuously supplied with power by means of a built-in switch, i.e., continuous current supply that is automatically switched over each time the turnout setting is changed.
